Word表格批量插入图片

代码功能:Word中批量插入图片,并且,图片下方展示具体的图片名字或者更详细的信息。支持图片插入后的自定义列数。可直接转化为VSTO代码。

Sub t()
    Set wd = Application
    Dim h As Integer
    Dim n As Integer
    Dim M As Integer
    Dim picrow As Integer
    Dim picname As String
    Dim picwidth
    Dim i
    Dim prr
    Dim pagewidth As Double
    wd.ScreenUpdating = False
    Dim a
    Dim P As Word.InlineShape
    Dim t As Word.Table
    If wd.Selection.Information(12) = True Then MsgBox ("请将光标置于表格之外!"): Exit Sub
    pagewidth = wd.ActiveDocument.PageSetup.pagewidth - wd.ActiveDocument.PageSetup.LeftMargin - wd.ActiveDocument.PageSetup.RightMargin
    With wd.FileDialog(3)
        .Title = "请选择..."
        If .Show = -1 Then
            n = Val(InputBox("请输入表格的列数:", "列数", 3))
            picrow = Val(InputBox("请输入图片信息总行数:" & vbCrLf & "例如:" & vbCrLf & vbCrLf & "张三+20220209+天津市" & vbCrLf & "这种就输入3" & vbCrLf & vbCrLf & "张三+天津市" & vbCrLf & "这种就输入2", "行数", 3))
            If Val(n) = 0 Then Exit Sub
            If Val(picrow) = 0 Then Exit Sub
            M = .SelectedItems.Count
            'h = IIf(M / n = Int(M / n), 2 * M / n, 2 * (Int(M / n) + 1))
            '有余数就+1,没有余数不需加1
            h = IIf(M / n = Int(M / n), (picrow + 1) * M / n, (picrow + 1) * (Int(M / n) + 1))
            Set t = wd.ActiveDocument.Tables.Add(wd.Selection.Range, h, n)
            t.Borders.Enable = True
            t.Borders.OutsideLineStyle = 7
            For Each a In .SelectedItems
                picname = GetFileInfo(a, 2)
                prr = Split(picname, "+")
                Set P = wd.Selection.InlineShapes.AddPicture(FileName:=a, SaveWithDocument:=True)
                With P
                    picwidth = .Width
                    .Width = Int(pagewidth / n)
                    .Height = .Width * .Height / picwidth
                End With
                i = i + 1
                '移动光标写入内容,设置内容居中显示
                wd.Selection.MoveLeft 1, 1
                For j = 0 To UBound(prr)
                    wd.Selection.MoveDown 5, 1
                    wd.Selection.TypeText (prr(j))
                    wd.Selection.Cells(1).Select
                    wd.Selection.ParagraphFormat.Alignment = 1 '决定了首行居中
                Next
                '/
                wd.Selection.HomeKey
                wd.Selection.MoveUp 5, UBound(prr) + 1
                wd.Selection.MoveRight 1, 2
                'Debug.Print i, n

                '/换行操作替代
                If i = Val(n) Then
                    Dim activetbl As Word.Table
                    Dim activerow As Integer
                    activerow = Selection.Information(wdStartOfRangeRowNumber)
                    Set activetbl = Selection.Tables(1)
                    activetbl.Cell(activerow + picrow + 1, 1).Select
                    'wd.Selection.MoveRight 1, 1
                    'wd.Selection.Cells(1).Select
                    'wd.Selection.EndKey
                    'wd.Selection.MoveDown 5, UBound(prr) + 1
                     i = 0
                End If
            Next
        End If
    End With
    wd.ScreenUpdating = True
    MsgBox "完成!共导入" & M & "张图片。", vbInformation, "Word魔方"
    'Catch
    ' MsgBox(Err.Description)
    ' wd.ScreenUpdating = True
    'End Try
End Sub

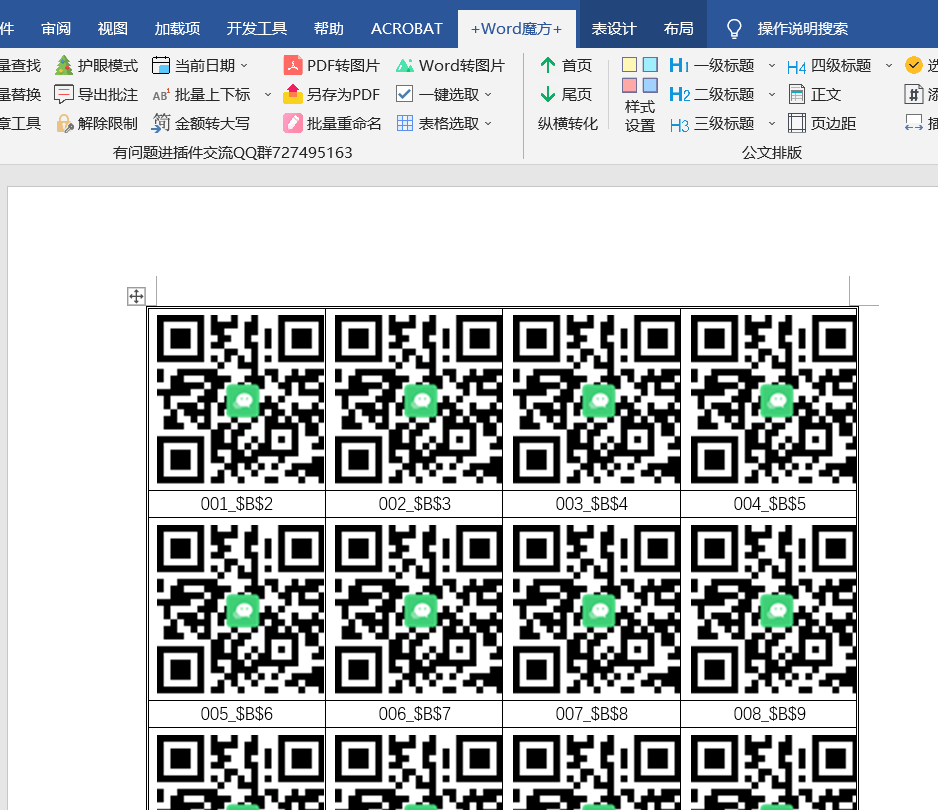

插入效果展示:
